| 起源の場所 | 中国 |
| ブランド名 | Quanshijia |
| 証明 | ISO13485&ISO9001 |
| モデル番号 | MEA60/PMEA60 |

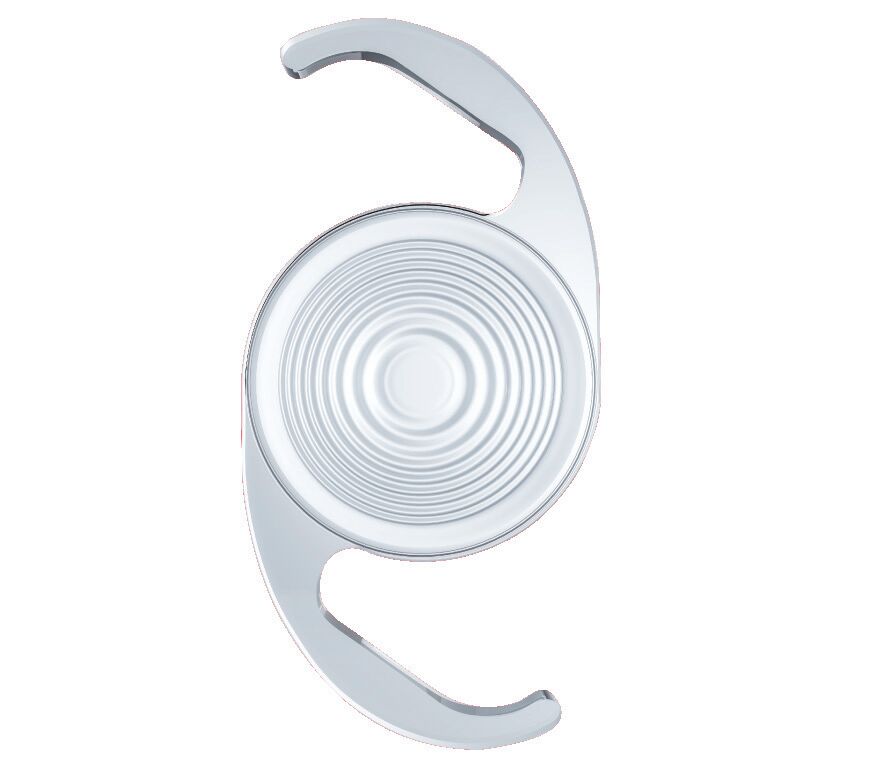

Pentafocal Full Vision Range(FVR) IOL
Our mission is to deliver exceptional visual acuity from far to near, ensuring aseamless and high-quality viewing experience, to meet the diverse visualdemands of patients' work and daily lives.
| Model | PMEA60(Preloaded),MEA60(Non-preloaded) |
|---|---|
| Spherical aberration | -0.12μm |
| Material | Hydrophilic Acrylic, UV Blocking |
| Optic design | Biconvex, Aspheric, the diffraction part is designed using patented Fourier Harmonic technology |
| Add power | Far-intermediate and near-intermediate add power:+0.8D/+2.4D |
| Power range | +5.0D~+34.0D(increasement 0.5D) |
| Optic diameter | 6.0mm |
| Total diameter | 12.5mm |
| Diffraction aperture | 4.8mm |
| Preloaded injection system size | 2.2mm |
| Recommended A Constant for A-ultrasound | 118.4 |
| Recommended A Constant for Optic Biometry | 118.8 |
| Haigis | a0=1.177, a1=0.4,a2=0.1 |
| Barrett | LF=1.78, DF=0.4 |
| Hoffer Q | pACD=5.39 |
| Holladay 1 | sf=1.61 |
| Holladay 2 | ACD=5.46 |
| SRK/T | A-Constant=118.8 |
Product Features:
1. Patented pentafocal Fourier Harmonic diffractive technology
12 Fourier harmonic components, fine-tuning the energy to 5 designated focal points, the diffraction rings are smooth, and the waveform is continuously derivable, achieving nearly 100% lightenergy efficiency with minimal optical interference such as halos, glare, and starbursts.
2. P.U.R.E. technology
Purification and extraction using organic solvents ensurethe "zero" of material impuri-ties and the lasting clarity ofintraocular lenses, enhancing biocompatibility.
3. Nanoscale CNC machining technology
No polishing is required, ensuring that the processed surface profile accurately meets the design requirements, reducing the risk of optical interference and energy loss even further.
